Container Information

Container Size

section 20DRY 40DRY 40HC 45HC 20RF 40RF 40RF(H) 20OT 40OT 20FR 40FR
Internal L 5.898m 12.032m 12.032m 13.556m 5.454m 11.583m 11.583m 5.889m 12.044m 5.612m 11.770m
W 2.352m 2.352m 2.352m 2.352m 2.286m 2.286m 2.290m 2.345m 2.350m 2.227m 2.380m
H 2.390m 2.390m 2.695m 2.698m 2.245m 2.215m 2.542m 2.312m 2.348m 2.213m 1.955m
Door Opening W 2.340m 2.340m 2.340m 2.340m 2.286m 2.294m 2.290m 2.335m 2.335m - -
H 2.280m 2.280m 2.585m 2.585m 2.168m 2.248m 2.500m 2.277m 2.280m - -
Cubic Meter 33.2cbm 67.8cbm 76.4cbm 86.0cbm 28.5cbm 58.7cbm 67.4cbm 31.8cbm 66.3cbm - -
Tare Weight 2,250kg 3,740kg 3,940kg 4,720kg 3,000kg 4,700kg 4,750kg 2,020kg 3,980kg 2,740kg 5,600kg
Maximum Payload 21,750kg 26,740kg 26,540kg 25,760kg 22,000kg 25,780kg 25,730kg 21,980kg 26,500kg 31,260kg 39,400kg
Total Weight 24,000kg 30,480kg 30,480kg 30,480kg 25,000kg 30,480kg 30,480kg 24,000kg 30,480kg 34,000kg 45,000kg

* Remark : Depending on shipping lines, the container size will be different.

Container Type

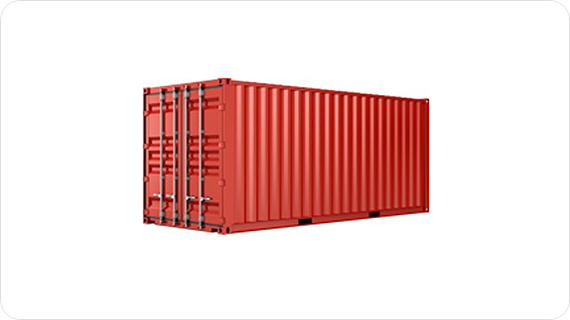

  • Dry Container

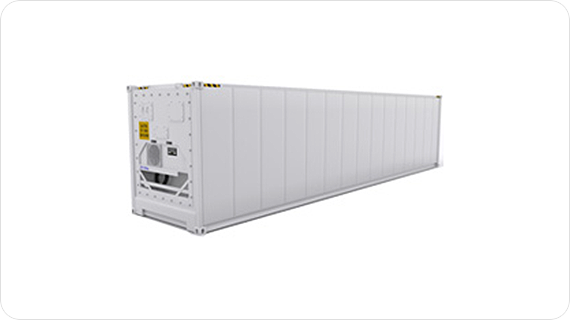

  • Reefer Container

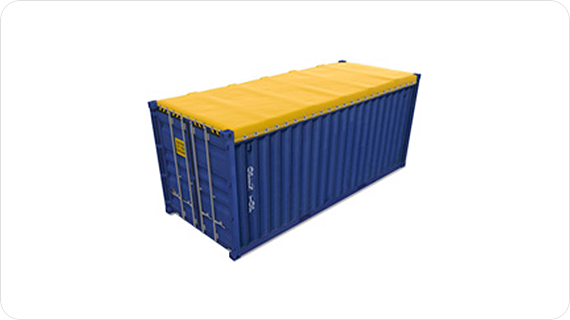

  • Open Top Container

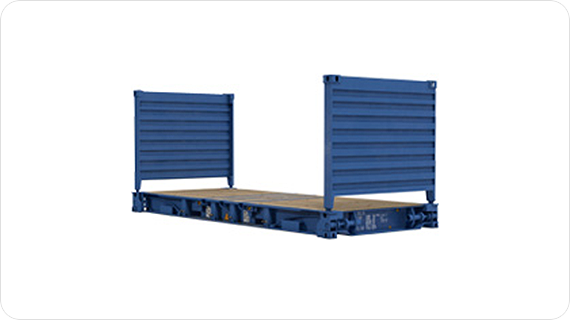

  • Flat Rack Container
